Data Cable NEO-CAT.7 Percon NEO-CAT7001

Data Cable NEO-CAT.7 Percon NEO-CAT7001

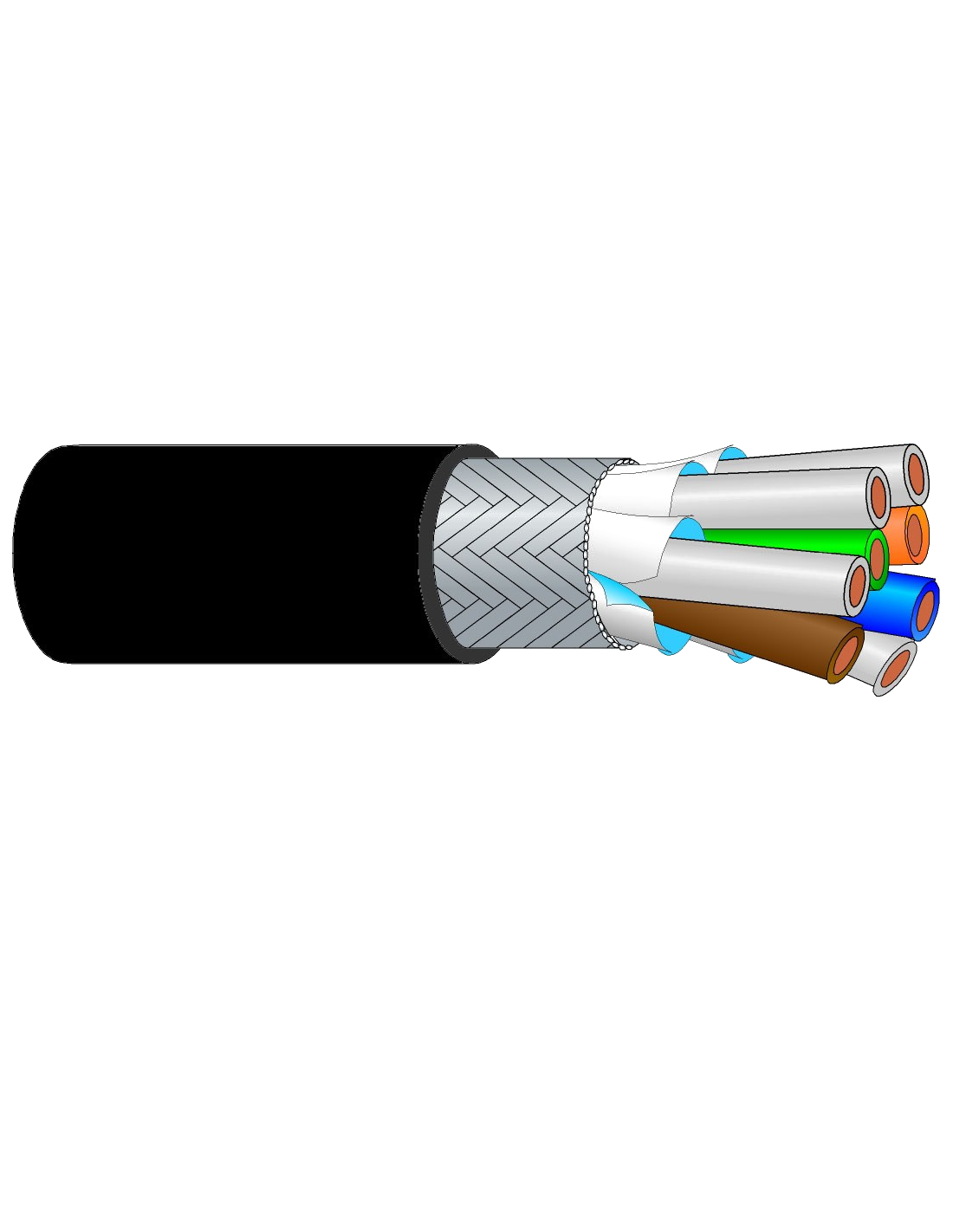

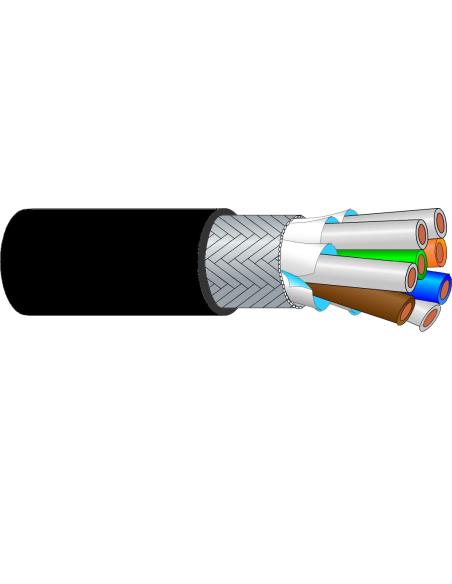

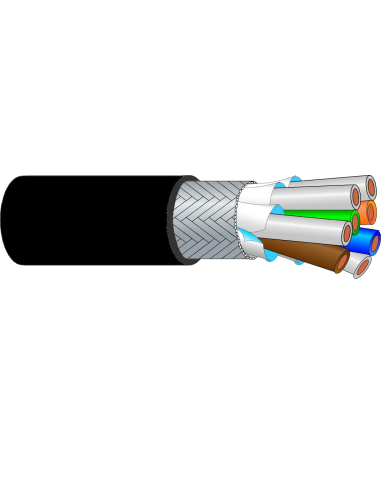

NEO-CAT7001HF/B2CA

Flexible 4-pair shielded Cat 7 data cable with oxygen-free copper conductors and halogen-free jacket, for 10GBase-T networks, PoE/PoE+, professional audio and video and HDBaseT.

The Percon NEO-CAT7001HF/B2CA, from the NEO Cat 7 series, is a high-performance data cable for linking computers, IT devices and professional audiovisual converters. It is ready for Gigabit Ethernet (1000Base-T) and 10 Gigabit Ethernet (10GBase-T) networks, and supports PoE and PoE+ power (IEEE 802.3at), audio and video over IP, and HDBaseT.

Its four pairs of stranded oxygen-free copper (Cu OFC) conductors with PEX insulation provide flexibility for frequent handling. Its shielding, with Al-PET foil and drain wire plus a tinned copper braid, provides highly effective protection against interference and crosstalk.

With a nominal outer diameter of 7.9 mm, a weight of 71 kg/km and an FRLSZH jacket — flame retardant, low smoke and zero halogen — it is a safe solution for OB vans, events and live productions. It complies with ISO/IEC 11801, EN 50173-1 and EN 50288-4-1.

Key features

  • Cat 7 data cable, 4 shielded pairs
  • Stranded oxygen-free copper (Cu OFC) conductors
  • PEX insulation
  • Al-PET + drain wire + tinned copper braid shield
  • 1000Base-T, 10GBase-T, PoE/PoE+ (IEEE 802.3at) and HDBaseT
  • Standards: ISO/IEC 11801, EN 50173-1, EN 50288-4-1
  • Designed for mobile use
  • FRLSZH jacket (flame retardant, low smoke, zero halogen)
  • Nominal outer diameter: 7.9 mm · Weight: 71 kg/km

Product Details

Nº conductors
4 x 2
Conductor
Cu OFC
AWG
23
Stranding
7/35
Section (mm2)
0.11
Insulation
PEX
Shield
Al -Pet + Drain Wire + Cusn
Nominal Size
7.9
Weight (Kg)
71
Use
mobile installation
Jacket
FRLSZH
NEO-CAT7001HF/B2CA
