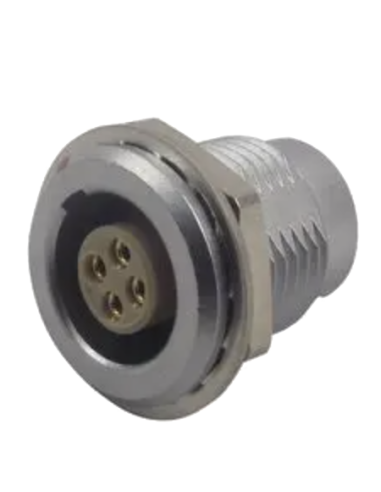

Connector Lemo LE-EGG.1B.304.CLL

The EGG.1B.304.CLL is a 1B series 4-way female circular connector with nut fixing. Offers single polarization pin contacts and socket contacts. Automatic pressure-pull interlocking system with four welding contacts. Housing and retaining nut in chrome-plated brass, intermediate pieces and locking sleeve in nickel-plated brass. The modular design of the 1B series connector offers a solution for most applications. The push-pull latching mechanism provides a secure connection while the contact density saves considerable panel space. Multiple polarization options prevent cross mating of similar connectors on the same panel. The robust design combined with precision manufacturing offers excellent durability, reliability and quality.

10A rated current

PEEK insulation

Default G-coding

IP50 degree of protection

Maximum 5000 couplings

4.8mR maximum resistance

Contact diameter 0.9mm

360° shielding for complete EMC shielding

Low voltage 4 insert configuration

Applications

Industrial, Automotive, Communications and Network, Hospital, Test and Measurement, Defense, Military and Aerospace
