BNC - HD, HDTV/SILVER+ , DIN ( UHD-1/4K )
- Impedance
- 75 OHMS
- Cable Type
- VK 95 (RG 59) / VK 6 / VK 66
NK-NBNC75BJP9

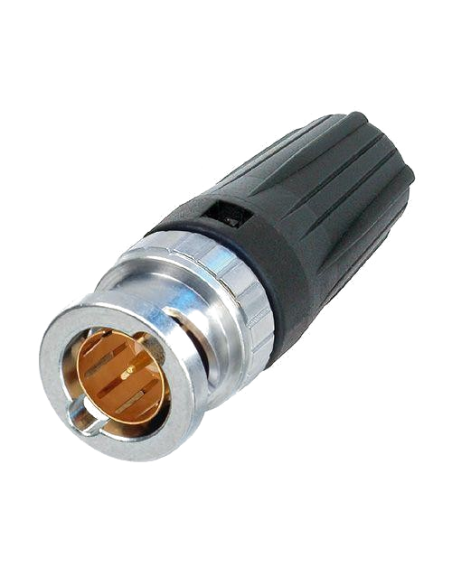

BNC Connector Neutrik NK-NBNC75BJP9
NK-NBNC75BJP9
The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cables:
Belden 1505F, Bryant BD SD53F, Cordial CVI 08-37 HD, Klotz VD083LP 0.8L/3.7DZ, Tesca Presto
Crimp size:
Pin: 1.6 mm (square)
Shield: 6.47 mm (hex)
Product Details
Description
Features & Benefits
“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
Ideal for recessed bulkheads where access to the “head” of the connector might be an issue.
These connectors turn from the back and not the front.
True 75 Ω design meets the stringent HDTV / DVD requirementsLeading area: Avoids tilting due to side forces to protect contacts from deformation.
Guarantees a lifetime of min. 1000 mating cycles!
Snug-fit center pin insert provides tactile feedback
Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
Excellent cable protection and retention
Precise Swiss machined brass parts for outstanding durability
Accessories include color coded boots in 10 standard colors, crimp tool and dies
