F.O ADAPTERS
- Colour
- Black
- Connector
- OpticalCon DUO
LC-LC - Type
- MM & SM ( 2 fiber )
NK-NO2-4FDW-1-A

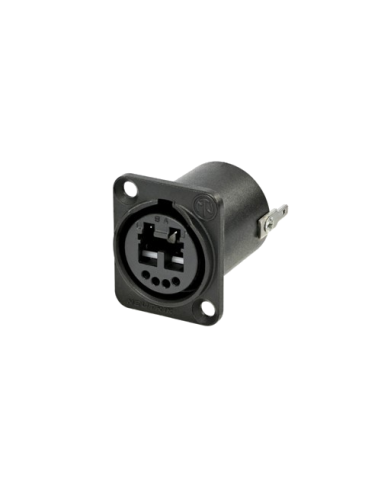

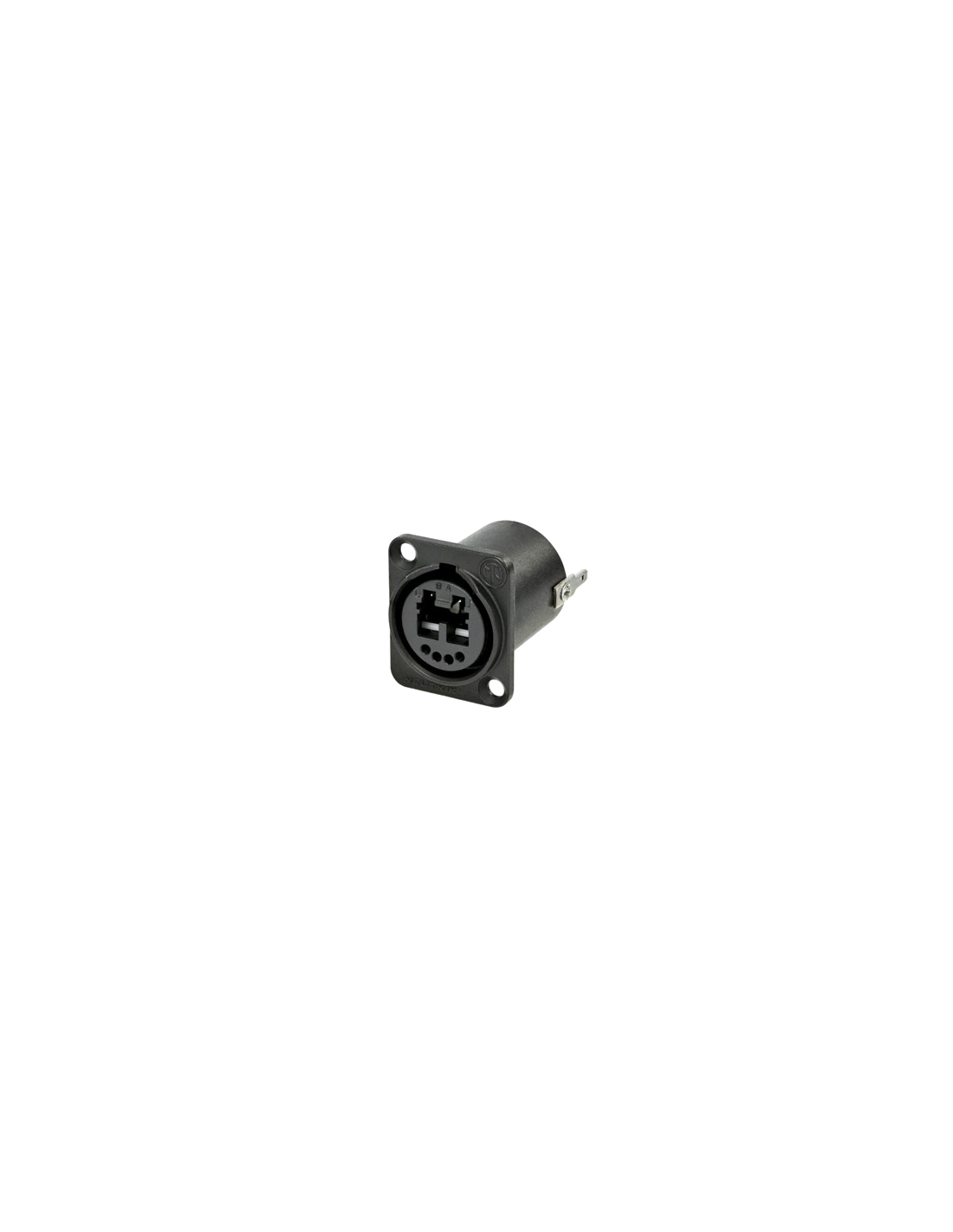

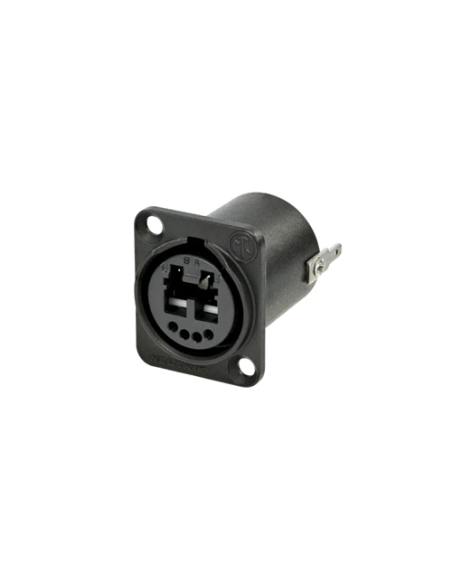

F.O Adapter Neutrik NK-NO2-4FDW-A-1
NK-NO2-4FDW-1-A
Chassis connector with black chromium plating, 4 solder contacts, 1 LC-Duplex feedthrough socket and 1 shell ground contact (for SMPTE cable shield), waterproof acc. to IP65 ingress protection in mated condition with SCDP-*.
The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.
Not compatible to SMPTE 304M standard. Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage.
Product Details
Description
Features & Benefits
Suggested OEM equipment connector due to LC front compatibility
Designed as feedthrough with automatic sealing shutter
Shutter with silicone gasket protects optical connection from dust and dirt
Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage
Accommodates standard LC connectors on the rear for simple installation
Connection on the front side either by rugged opticalCON or standard LC connector
The low cost of the chassis connector makes it a viable alternative to traditional connectors in fixed installationsIP65 ingress protection in mated condition with SCDP-*
Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard:
Multimode - black
Single mode PC - blue
Single mode APC - green
