ETHERCON NETWORK CONNECTORS
- Type
- Panel
- Pins
- RJ 45
- For Cable
- CAT 5
NK-NE8FDV-Y110

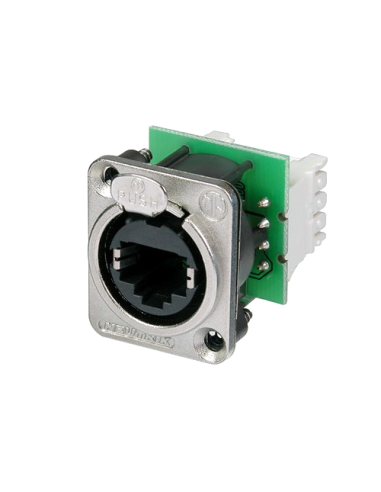

Red Connector Neutrik NK-NE8FDV-Y110
NK-NE8FDV-Y110
Panel mount receptacle with IDC 110 punch down terminals, D-shape metal flange with latch lock, max. panel thickness 4 mm, mounting screws included
The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Product Details
Description
Features & Benefits
Accommodates NE8MC* or any standard RJ45 plug
Approved latch lock system
Mountable from the front or rear of the panel
Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
Selectable ground - panel connection
Easy and quick mounting using 110 type punch down terminals
etherCON D Series
The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market. A Sealing kit, various wiring applications and colour codings are available.
