Red Connector Neutrik NK-NE8MC6-MO

Reference NK-NE8MC6-MO

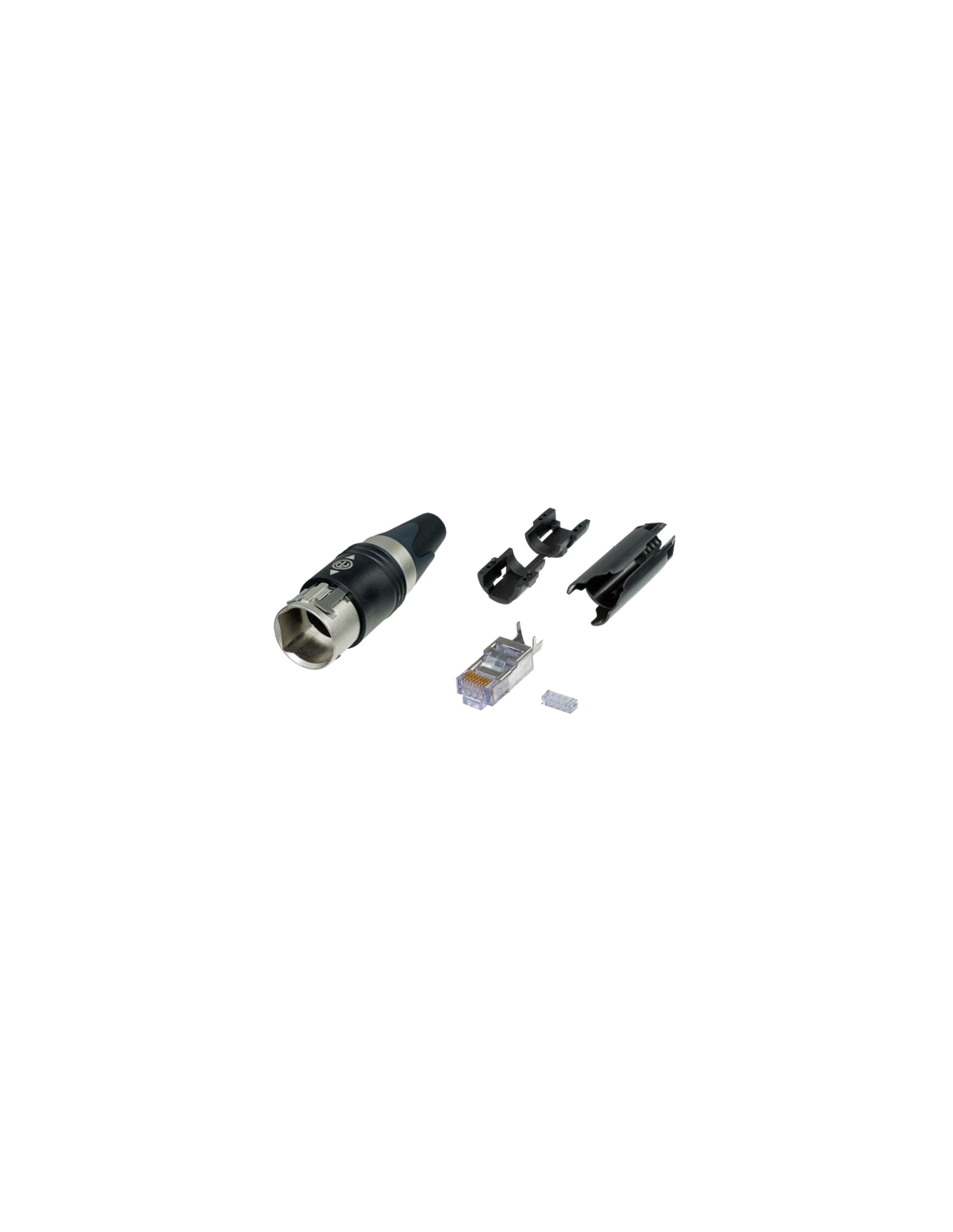

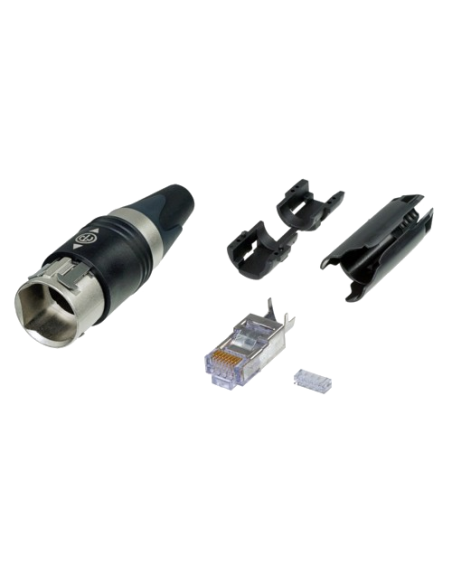

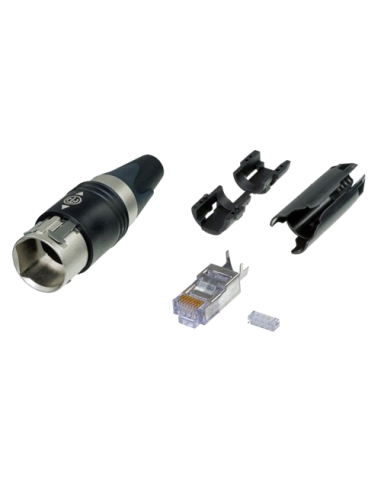

The set NE8MC6-MO includes a cable plug carrier offering a robust metal shell with Push-Pull locking system, proven Neutrik chuck-type strain relief and a CAT6 RJ45 plug. The set can accommodate STP und UTP cables with O.D. of 5.5 to 6.5mm and gauge of AWG 22 to 28 solid or stranded wire. This self-termination version is water-protected according to IP65.

Attention! Intermates ONLY with NE8FDY-C6* Cat 6 receptacles.

Not compatible with CAT5 and CAT6A chassis connectors.

Product Details

Colour: Black
Pins: RJ 45

Brand

ISBN NK-NE8MC6-MO

Description

Features & Benefits

Complies with CAT6 specifications according to TIA / EIA 568B, ISO / IEC 11801, EN 50173

CAT6 compliant - data rate up to 10 GBit/sIP65 - Dust and waterproof in mated condition

Shielded system - high noise immunity and EMI protection

Push Pull mating - secure and proven locking system

Unique Neutrik chuck-type strain relief

Color coding with accessory BXX-* - to guarantee IP65 protection, boot has to be mounted with metal ring of NE8MC6-MO
