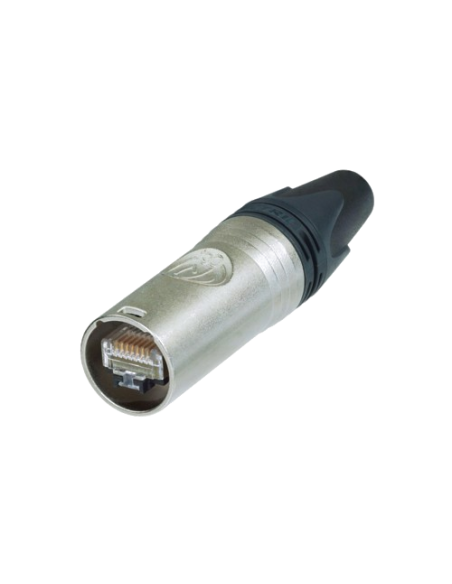

Red Connector Neutrik NK-NE8MX6

NK-NE8MX6

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, nickel plating


The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded).


Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.


If the insulation diameter is ≤ 1.1 mm please refer to NE8MX6-T.

Product Details

Pins
RJ 45
NK-NE8MX6

Description

Features & Benefits


Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2

PoE++ compliant according to 802.3bt

Type4IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W

Rugged latch lock system million fold provenIntermateable with the existing etherCON CAT5 range

Unique Neutrik chuck-type strain relief
