NK-NL8MPRXX

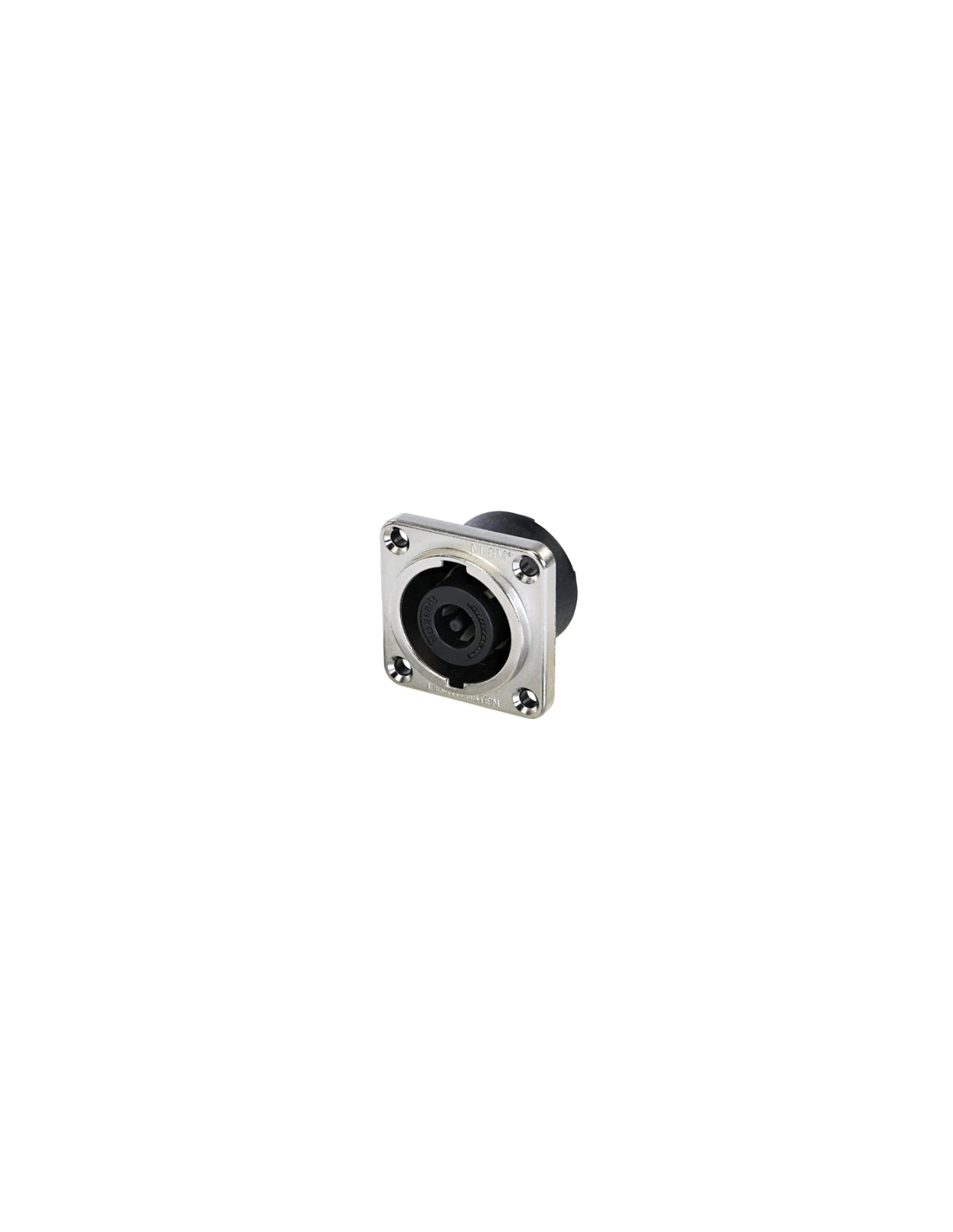

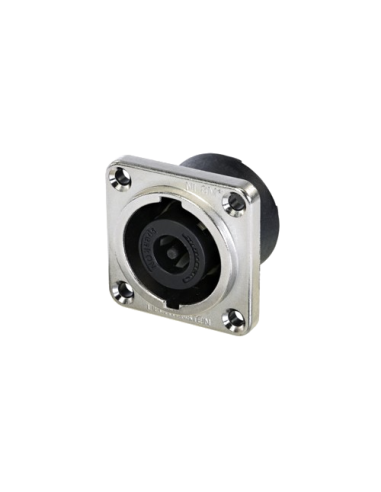

Audio Connector Neutrik NK-NL8MPRXX
NK-NL8MPRXX
8 pole male chassis connector, metal square G-size housing, countersunk thru holes, 3/16“ flat tabs
This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections and feature a unique metal locking system, making contact only once fully locked. The receptacles are robust, versatile and easy to terminate.
Product Details
Description
Features & Benefits
IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
Current rating 30 A rms
Extremely robust metal flange and glass reinforced V-0 material for harsh and demanding environment
Precise keyway for secure mating
Airtight design – optimized for speaker applications
speakON Chassis Connectors
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate. The chassis connectors are airtight for audio applications (leakage 30 cm3/s at 10 kPa differential pressure) unless otherwise stated.
Termination
No suffix = solder termination or 3/16" flat tabs
H = horizontal pcb mount,
V = vertical pcb mount, straight pins
ST = screw terminal
Panel mount
Front and rear
Panel fastening
Standard: Countersunk mounting holes to accept M3 bolts or rivets
M3: M3 threaded insert
PCB mount: Self-tapping PLASTITE®* screw with thread 2.9 x 1.06 mm and of tri-rondular configuration (A-screw)
*PLASTITE® is a registered trademark of SFS Unimarket
