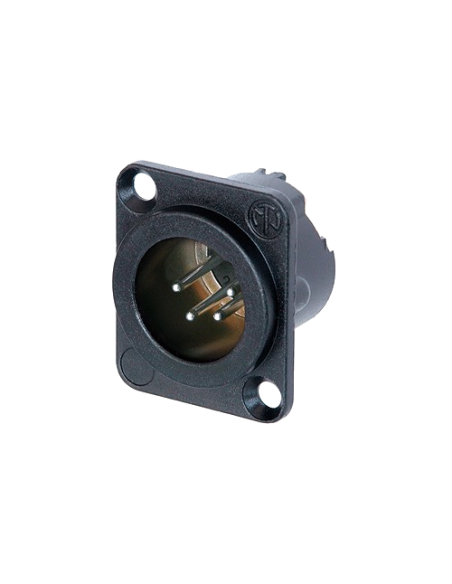

Audio Connector Neutrik NK-NC4MD-LX-BAG

Features & Benefits

All metal housing offers best overall RF protection and electromagnetic shielding

Duplex ground contact for excellent contact integrity between chassis and cable connector

Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact

Female contact incorporates a solder barrier to prevent solder running into the contact mating area

Larger solder contacts for easier termination

Optional connection to easily join pin1 to chassis ground

D-style housing provides installation compatibility with industry standard D mounting dimensions

DLX Series

Neutrik's DLX series - the next generation of the popular DL XLR chassis connectors - provides unequalled performance through quality design. The new DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Reliability, robustness and dependability derive from incorporating latest components from the well proven and reliable XX and A series connectors.

Termination

Solder cups

Locking mechanism

-0 = no latch, retention spring

No suffix = latch lock

Grounding

Separate duplex ground contact to mating connector shell and front panel with the option of solder connection to pin1.

Panel mount

Front and rear

Panel fastening

Standard: Countersunk mounting holes to accept M3 bolts or rivets

M3 version: M3 tapped thread

Panel thickness

1 - 3 mm
