Broadcast Baluns
MUXLAB/500701-2PK

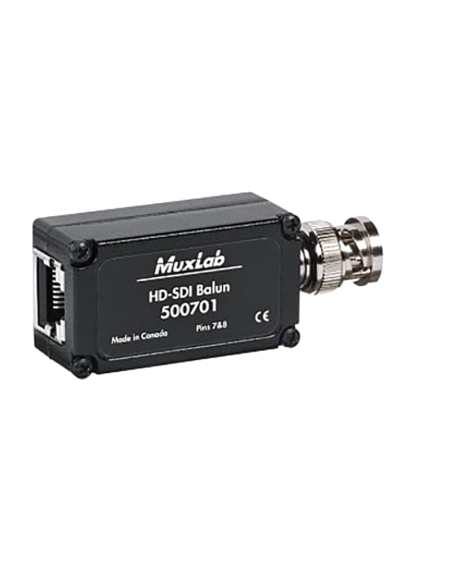

HD-SDI Balun MUXLAB/500701-2PK
MUXLAB/500701-2PK
The MuxLab 500701 – HD-SDI Balun allows a single HD-SDI signal to be transmitted up to 150ft / 45m via Cat5e/6 cable at HD resolution in a point-to-point configuration. The HD-SDI Balun supports the transmission of up to 1.5 Gbps uncompressed, un-encrypted digital video (optionally including up to 16 channels of embedded Audio and/or embedded Time Code) within television facilities and between professional video equipment.
Product Details
Description
Features :
- Supports SD and HD (720p, 1080i) resolutions
- Up to 150ft / 45m via single Cat5e/6 cable @ HD
- Up to 400ft / 120m via single Cat5e/6 cable @ SD
- Supports up to 16 channels of embedded Audio and/or embedded Time Code
- Cast aluminium enclosure for EMI/RFI shielding
