Data Cable NEO-CAT.5e Percon NEO-CAT5011HF/HS
Percon
Data Cable NEO-CAT.5e Percon NEO-CAT5011HF/HS

Data Cable NEO-CAT.5e Percon NEO-CAT5011HF/HS

NEO-CAT5011HF/HS

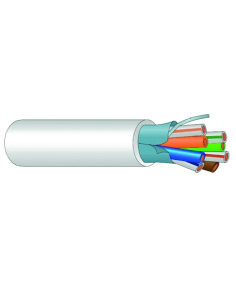

4-pair shielded Cat 5e F/UTP data cable with 24 AWG solid conductors, for networks, IT equipment and A/V converters. PoE/PoE+, audio/video and HDBaseT compatible. PTC or FRLSZH jacket.

The Percon NEO-CAT5011HF/HS, from the NEO Cat 5e series, is an F/UTP data cable for linking computers, IT devices and audiovisual converters over Gigabit Ethernet (1000Base-T) networks. It supports PoE and PoE+ power (IEEE 802.3at), audio and video over IP, and HDBaseT.

Its four pairs of solid 0.20 mm² (24 AWG) copper (Cu) conductors with PE insulation ensure stable data transmission. Its overall Al-PET shield with drain wire protects it against interference.

With a nominal outer diameter of 6.4 mm and a weight of 46 kg/km, it is available with a PTC jacket or an FRLSZH jacket — flame retardant, low smoke and zero halogen — in grey. It is a reliable solution for fixed structured cabling in offices, technical rooms and AV installations. It complies with ISO/IEC 11801, EN 50173-1, EN 50288-2-1, IEC 61156-5 and TIA/EIA-568-B.2.

Key features

  • Shielded Cat 5e F/UTP data cable, 4 pairs
  • Solid copper (Cu) conductors, 0.20 mm² (24 AWG)
  • PE insulation
  • Overall Al-PET shield + drain wire
  • 1000Base-T, PoE/PoE+ (IEEE 802.3at) and HDBaseT
  • Standards: ISO/IEC 11801, EN 50173-1, EN 50288-2-1, IEC 61156-5, TIA/EIA-568-B.2
  • Designed for fixed installation
  • Grey PTC or FRLSZH jacket
  • Nominal outer diameter: 6.4 mm · Weight: 46 kg/km

Product Details

Nº conductors
4 x 2
Conductor
Cu
AWG
24
Stranding
Solid
Section (mm2)
0.20
Insulation
PE
Shield
Al- PET + Drain Wire
Nominal Size
6.4
Weight (Kg)
46
Colour
Grey
Use
fixed installation
Jacket
PTC/ FRLSZH
Composition
F/UTP RÍGIDO
NEO-CAT5011HF/HS/ECA
