Data Cable LK Series Percon LK 4202 FCA
Percon
Data Cable LK Series Percon LK 4202 FCA

Data Cable LK Series Percon LK 4202 FCA

LK 4202 FCA

Low-capacitance, double-shielded 4-pair 0.22 mm² multipair control cable, ideal for IT, instrumentation and control applications such as RS-232C, RS-485 and RS-422. PTC or FRLSZH jacket and class Fca.

The Percon LK 4202 FCA, from the LK series, is a low-capacitance multipair control cable, ideal for any IT, instrumentation or control application using serial protocols such as RS-232C, RS-485 and RS-422.

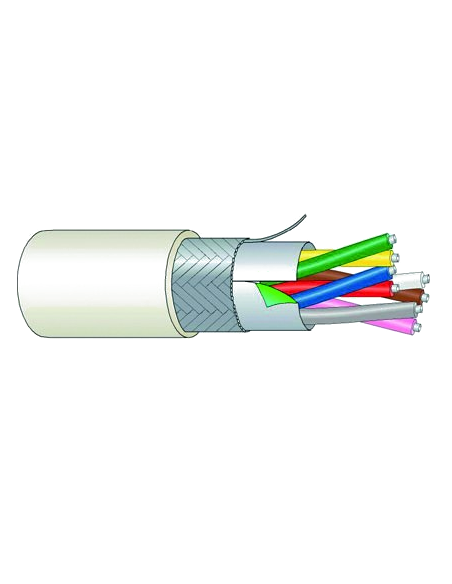

Its four pairs of 7-strand 0.22 mm² (24 AWG) tinned copper (CuSn) conductors with PEX insulation ensure stable data transmission. Its double shield, made of an Al-PET tape with drain wire and a tinned copper braid, provides high protection against interference, especially useful in industrial and technical environments with electrical noise.

With a nominal outer diameter of 7.2 mm and a weight of 50 kg/km, it is available with a PTC jacket or an FRLSZH jacket — flame retardant, low smoke and zero halogen — in grey, and has Fca reaction-to-fire classification. Its stranded conductors make it suitable for mobile installations.

Key features

  • LK series multipair control cable, 4 pairs
  • 7-strand tinned copper (CuSn) conductors, 0.22 mm² (24 AWG)
  • PEX insulation
  • Low capacitance
  • Double shield: Al-PET + drain wire + tinned copper braid
  • For RS-232C, RS-485, RS-422, IT, instrumentation and control
  • Designed for mobile use
  • Grey PTC or FRLSZH jacket
  • Fca reaction-to-fire classification
  • Nominal outer diameter: 7.2 mm · Weight: 50 kg/km

Product Details

Conductor
Cu Sn
AWG
24
Stranding
7/32
Section (mm2)
0.22
Insulation
PEX
Shield
Al -Pet + Drain Wire + Cusn
Nominal Size
7.2
Weight (Kg)
50
Colour
Grey
Use
mobile installation
Jacket
PTC / FRLSZH
Nº Pares
4
0602/FCA
