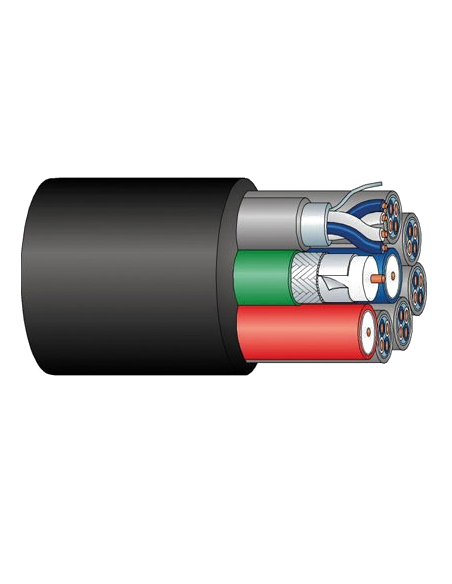

Digital Multicore Cable Percon TVL 3600/5

Digital Multicore Cable Percon TVL 3600/5

TVL 3600/5

TVL range digital multicore cable combining 3 video coaxials and 6 audio star-quads in a single run. Ideal for mobile applications.

The Percon TVL 3600/5 is a TVL range digital multicore cable that brings video and audio together in a single run, simplifying cabling and speeding up set-up in mobile applications.

It includes three video coaxials (VK 5 type), each with a 0.28 mm² (23 AWG) solid copper (Cu) conductor, foamed high-density polyethylene (FHDPE) insulation and a double shield of Al/PET/Al tape and tinned copper braid; and six star-quads for audio, with 0.2 mm² (24 AWG) oxygen-free copper (Cu OFC) conductors, PEX insulation and an Al-PET shield, providing high immunity to interference.

With a nominal outer diameter of 19.1 mm, a weight of 386 kg/km and a PTC jacket, it is a robust solution for OB vans, cameras, events and live productions with many audio channels.

Key features

  • TVL digital multicore: 3 video coaxials + 6 audio star-quads
  • Coaxials (VK 5 type): solid Cu, 0.28 mm² (23 AWG), FHDPE insulation, Al/PET/Al tape + tinned copper braid shield
  • Audio star-quads: Cu OFC, 0.2 mm² (24 AWG), PEX insulation, Al-PET shield
  • Designed for mobile use
  • PTC jacket
  • Nominal outer diameter: 19.1 mm · Weight: 386 kg/km

Product Details

Nº conductors
3 | 6
Conductor
Cu | Cu OFC
AWG
23 | 24
Stranding
Solid | 25/38
Section (mm2)
0.28 | 0.2
Insulation
FHDPE | PEX
Shield
AL - Pet - Al + CuSn | AL-Pet
Nominal Size
19.1
Weight (Kg)
386
Use
mobile installation
Jacket
PTC
Composition
Coax Video (VK5) | Star-Quad Audio
