TVL range digital multicore cable combining a video coaxial and 2 shielded CK 0004-type cables in a single run. Ideal for mobile applications.

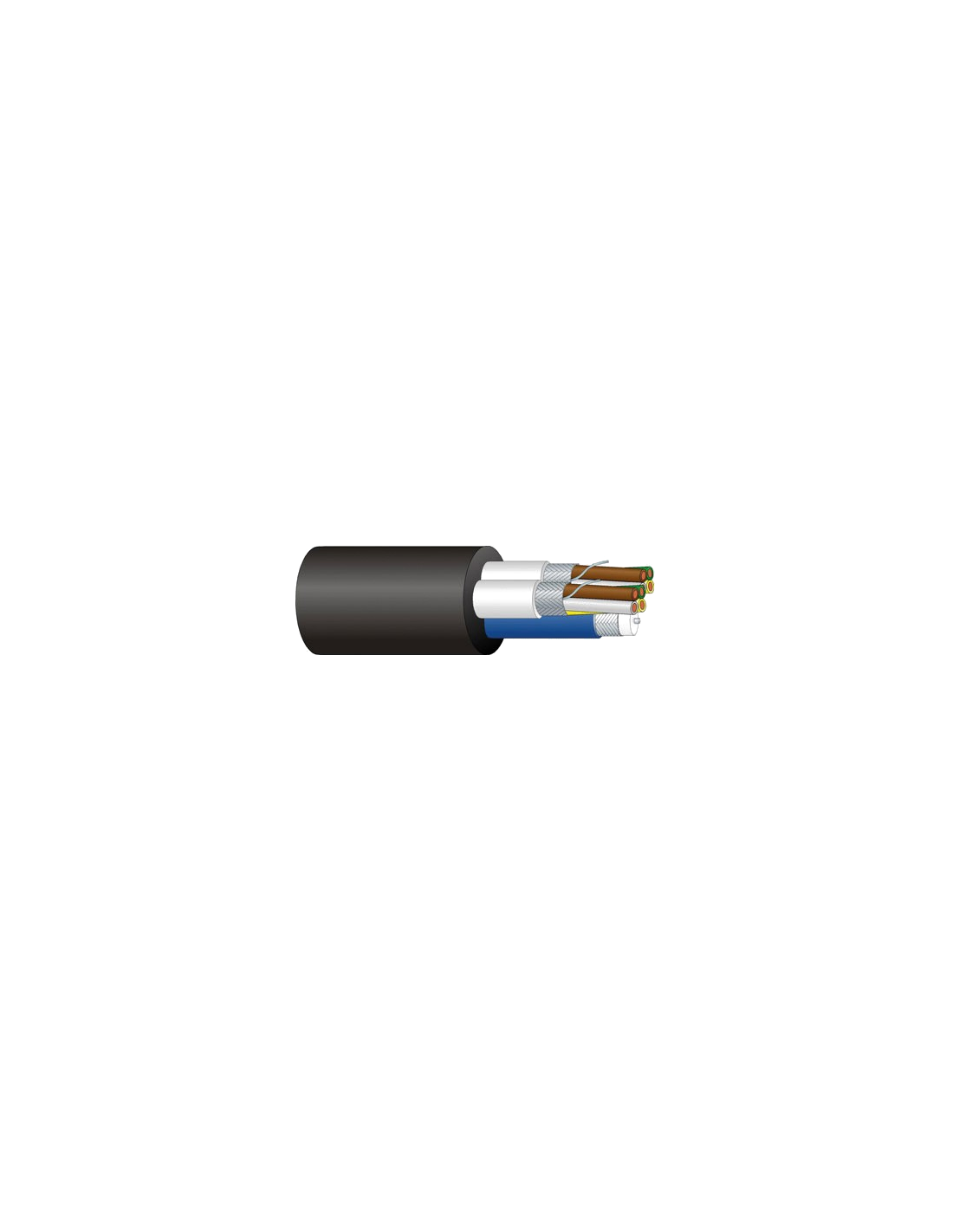

The Percon TVL 1002/5 is a TVL range digital multicore cable that brings video and signal together in a single run, simplifying cabling and speeding up set-up in mobile applications.
It includes one video coaxial (VK 5 type), with a 0.28 mm² (23 AWG) solid copper (Cu) conductor, foamed high-density polyethylene (FHDPE) insulation and a double shield of Al/PET/Al tape and tinned copper braid; and two CK 0004-type cables, with stranded 0.22 mm² (24 AWG) copper conductors, PTC insulation and a tinned copper shield with drain wire.
With a nominal outer diameter of 14.4 mm, a weight of 237 kg/km and a PTC jacket, it is a compact, robust solution for OB vans, cameras, events and live productions.
Key features
- TVL digital multicore: 1 video coaxial + 2 CK 0004 cables
- Coaxial (VK 5 type): solid Cu, 0.28 mm² (23 AWG), FHDPE insulation, Al/PET/Al tape + tinned copper braid shield
- CK 0004 cables: stranded Cu, 0.22 mm² (24 AWG), PTC insulation, tinned copper shield + drain wire
- Designed for mobile use
- PTC jacket
- Nominal outer diameter: 14.4 mm · Weight: 237 kg/km
